Layout

Given that Flutter is a UI toolkit, you'll spend a lot of time creating layouts with Flutter widgets.

In this section, you'll learn how to build layouts with some of the most common layout widgets. This includes high-level widgets like Scaffold and AppBar, which lay out the structure of a screen, as well as lower-level widgets like Column or Row that lay out widgets vertically or horizontally.

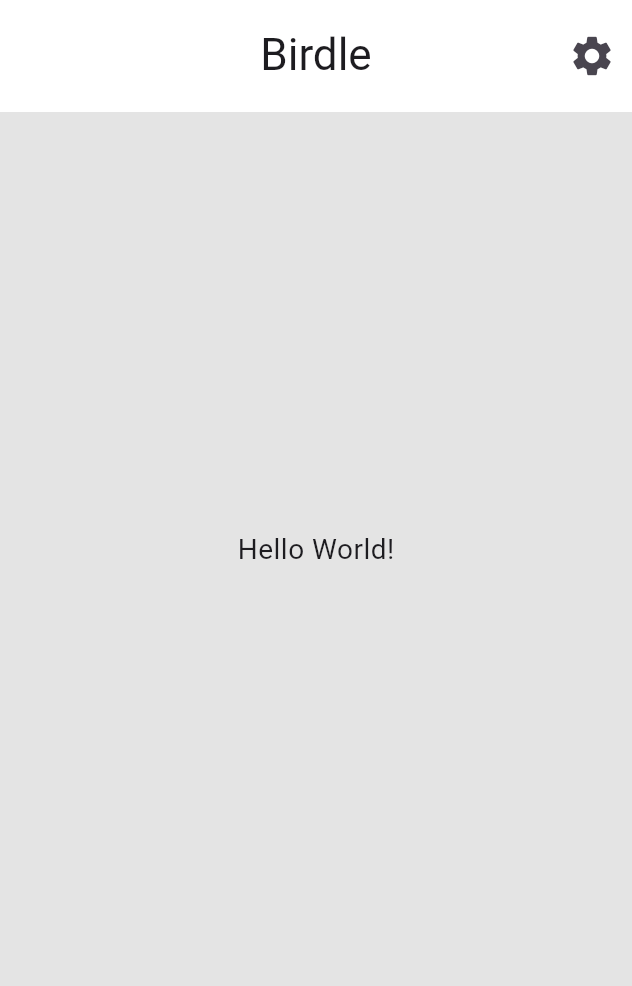

Mobile applications often have a bar at the top called an "app bar" that can display a title, navigation controls, and/or actions.

The simplest way to add an app bar to your app is by using two widgets: Scaffold and AppBar.

Scaffold is a convenience widget that provides a Material-style page layout, making it simple to add an app bar, drawer, navigation bar, and more to a page of your app. AppBar is, of course, the app bar.

The code generated from the flutter create --empty command already contains an AppBar widget and a Scaffold widget. The following code updates it to use an additional layout widget: Align. This positions the title to the left, which would be centered by default. The Text widget contains the title itself.

Modify the Scaffold within your MainApp widget's build method:

class MainApp extends StatelessWidget {
  const MainApp({super.key});
​
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(
          title: Align(
            alignment: Alignment.centerLeft,
            child: Text('Birdle'),
          ),
        ),
        body: Center(child: Tile('A', HitType.hit)),
      ),
    );
  }
}

Considering your app's widget tree gets more important as your app grows. At this point, there's a "branch" in the widget tree for the first time, and it now looks like the following figure:

Add the following code for a new widget, called GamePage, to your main.dart file. This widget will eventually display the UI elements needed for the game itself.

class GamePage extends StatelessWidget {
  const GamePage({super.key});
  // This object is part of the game.dart file.
  // It manages wordle logic, and is outside the scope of this tutorial.
  final Game _game = Game();
​
  @override
  Widget build(BuildContext context) {
    // TODO: Replace with screen contents
    return Container();
  }
}

The GamePage layout contains the grid of tiles that display a user's guesses.

There are a number of ways you can build this layout. The simplest is with the Column and Row widgets. Each row contains five tiles that represent the five letters in a guess, with five rows total. So you'll need a single Column with five Row widgets as children, where each row contains five children.

To get started, replace the Container in GamePage.build with a Padding widget with a Column widget as its child:

class GamePage extends StatelessWidget {
  const GamePage({super.key});
  // This manages game logic, and is out of scope for this lesson.
  final Game _game = Game();
​
  @override
  Widget build(BuildContext context) {
    return Padding(
      padding: const EdgeInsets.all(8.0),
      child: Column(
        spacing: 5.0,
        children: [
          // Add children next.
        ],
      ),
    );
  }
}

The spacing property puts five pixels between each element on the main axis.

Within Column.children, for each element in the _game.guesses list, add a Row widget as a child.

class GamePage extends StatelessWidget {
  const GamePage({super.key});
  // This manages game logic, and is out of scope for this lesson.
  final Game _game = Game();
​
  @override
  Widget build(BuildContext context) {
    return Padding(
      padding: const EdgeInsets.all(8.0),
      child: Column(
        spacing: 5.0,
        children: [
          for (var guess in _game.guesses)
            Row(
              spacing: 5.0,
              children: [
                // We'll add the tiles here later.
              ]
            ),
        ],
      ),
    );
  }
}

The for loop in the children list is called a collection for element, a Dart syntax that allows you to iteratively add items to a collection when it is built at runtime. This syntactic sugar makes it easier for you to work with collections of widgets, providing a declarative alternative to the following:

[..._game.guesses.map((guess) => Row(/* ... */))],

In this case, it adds five Row widgets to the column, one for each guess on the Game object.

The widget tree for this app has expanded significantly in this lesson. Now, it looks more like the following (abridged) figure:

When you reload your app, you should see a 5x5 grid of white squares.
